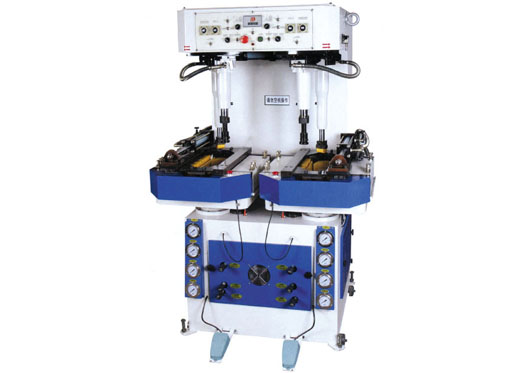

全油壓墻式壓底機（9缸/12缸/15缸）BD-996
1. 本機采用全油壓系統設計，適用于龍船底運動鞋及休閑鞋的外底壓著，壓 底、壓邊及壓前后，可以一次完成或個別完成，出力大，粘合牢固，壓著均勻。是制鞋業不可缺少的自動化萬能壓底機械。
2. 上升油壓缸采用雙缸系統，可使上升動作加壓使大底粘合更牢固。
3. 壓桿機構采用油壓動作，壓桿機構科移位設計，以利鞋楦容易取放。
4. 鞋槽兩側壓塊采用油壓動作，每個壓塊由一個油缸獨立的工作，可隨大小不同的尺寸調整壓著，壓著可隨時間繼電器調整，使鞋邊壓著達到良好的壓著效果。
機械尺寸：160×75×170cm
包裝尺寸：175×90×182cm
日產量：3000-3500雙/8時
油壓壓力：40kg/cm²
液壓油種類及重量：R68/130kg
馬力：3HP
凈重：160Kg
毛重：由本公司出貨時提供
BD-996 Full Oil Force Gantry Walled Sole Attaching Machine
Main features：
1. Adopting oil hydraulic design, the machine has high pressure to make a firm and solid adhension. It is suitable for long outsole bottom sports shoes casual shoes, pressure at the end, the pressure around the edge and pressure, can be a complete or individual to complete. It is an indispensable automation universal sole attaching machine for the footwear industry.
2. Increased cylinder-cylinder system allows increased movement and pressure to bond more firmly outsole.
3. Lever mechanism by hydraulic b, with shift designed, can make shoe easy to place.
4. Shoes groove on both sides of the compact is with hydraulic b. Each clamp has a cylinder to work independently. With different sizes to be resized pressing, pressing with time relay can be adjusted so that the shoe pressing edges to achieve better results.
Machine size：160*75*170cm
Packing size: 175*90*182cm
Daily output: 3000-3500 pairs/8 hours
Weight: 160Kg
Motor：3HP
Hydraulic Pressure：40Kg/cm²
Hydraulic type and weight:R68/130Kg
