產品詳情

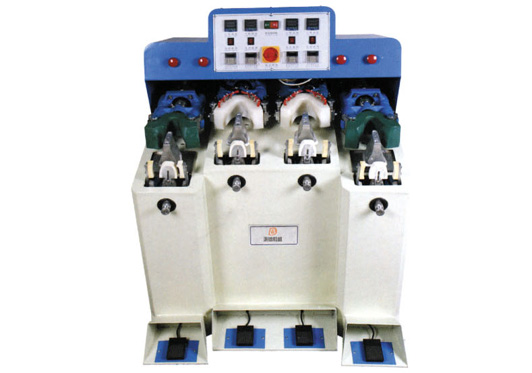

雙冷雙熱后踵定型機/臥式 BD-889A
1.本機配有兩組冷凍膠膜與兩組橡膠熱壓組，而且冷凍上模使用橡膠膠膜配合后踵掃刀，下模使用單一螺絲，固定換裝迅速，增進成產效率。
2.適合各種材質，鋁?？勺孕姓{(diào)整溫度，針對環保熱熔膠、定型設計效果更佳，保養容易。
3.冷模刀結構動作有無，可視制鞋需求來選擇開關。
4.為達定型位置正確，本機備用對焦燈之設備及多功能夾具，正常運轉十分鐘內蒸發器可達-20℃以上，配合鞋面與鞋模貼楦定型。
機械尺寸：113×90×160cm
耗電量：2.5KW
空壓源：5-6kg/cm²
日產量：1700-2000雙/8時
凈重：280Kg
Double cold double hot counter molding machine / Horizontal BD-889A
1. This machine is equipped with two sets of film and two frozen rubber hot group, and frozen after the mold with a rubber heel wipers film, the die using a single screw, fixed dress quickly enhance a production efficiency.
2. Suitable for all kinds of material, aluminum mold can adjust the temperature, hot-melt adhesives for environmental protection, better styling design, easy maintenance.
3. Have the b chills knife structure, visual footwear needs to choose switch.
4. setting up the correct b, the device's native backup and multi-focus light fixture, the normal operation of up to ten minutes evaporator -20 ℃, with uppers and shoe molds posted last stereotypes.
Mechanical Dimensions: 113 × 90 × 160cm
Power consumption: 2.5KW
Air source: 5-6kg / cm²
Output: 1700-2000 double / 8:00
Weight: 280Kg
