產品詳情
 |
歐柏銳科技SDI轉HDMI轉換器實測圖鏈接網址： 1.http://oupree.1688.com/page/newslist.htm
|

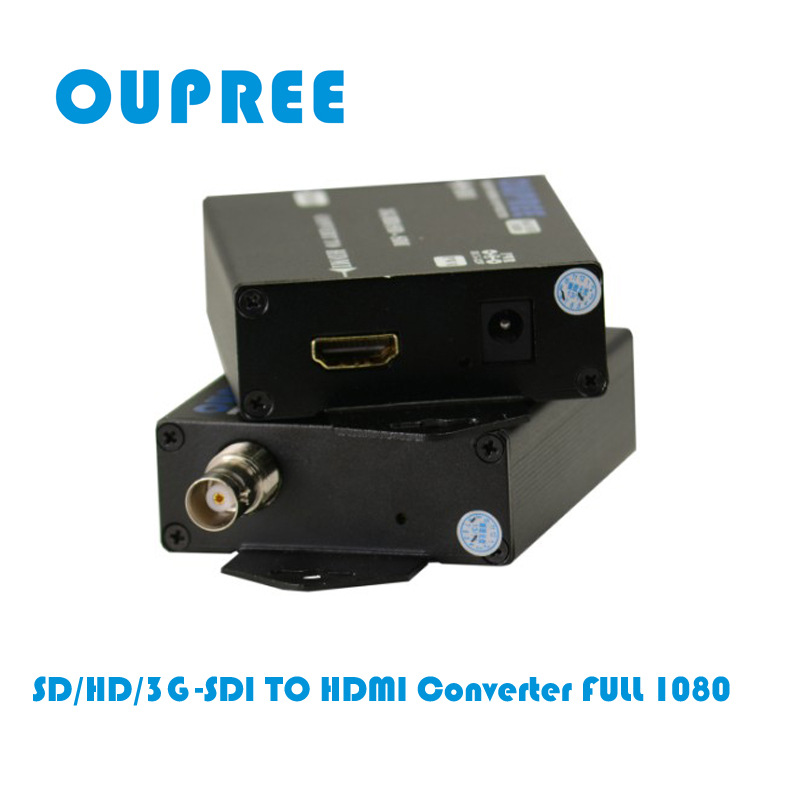

SD/HD/3G-SDI轉HDMI高清轉換器支持將廣播級SDI信號轉為高清HDMI 信號輸出，集成SDI 接收器及HDMI 調制器，可方便的將SDI 信號轉為HDMI 信號，同時會將SDI所帶音頻信號分離轉換后嵌入到HDMI 信號中，以實現聲音及圖像同步傳輸。工作原理是把單路數字分量串行接口(SDI)信號通過轉變成TMDS信號，從而可以將高清攝像機和帶HDMI接口的顯示終端連接起來.
特性（Features)
提供高清數字分量串行接口SDI（SD/HD/3G-SDI）輸入接口.
提供高清數字信號HDMI(1080P@60Hz)輸出接口.
提供電源適配器 5V DC接口.
支持3G-SDI信號100米
支持SDI內嵌音頻輸入,集成SDI接收器,集成HDMI調制器.
支持HDMI1.3版本并向下兼容.
支持AES/EBU音頻嵌入到TMDS信號中,經HDMI輸出.
支持音頻和圖像唇形同步輸出.
支持輸出視頻流暢，無信號丟失、偏屏和屏幕抖動.
產品專業于廣電播出機房及非編系統，安裝簡便（無軟件與驅動安裝）.
熱傳導考慮設計,滿足7天x24小時在線運行要求.
通過 CE, FCC, RoHS 認證.
參數（Specifications）
|
產品名稱 |
SDI轉HDMI/DVI高清轉換器 |
|
|
輸出信號 |
HDMI(1.3/1.2)/DVI(1.0) |
|
|
輸入信號 |
SD/HD/3G-SDI |
|
|
接口類型 |
輸出接口: |
|
|
功耗 |
5V DC (110~220V) / 500mA ± 10% 最大6.5瓦 適配器供電 |
|
|
輸入分辨率 |
1080P @60HZ (SMPTE424M /SMPTE425-A) 3G |
|
|
輸出分辨率 |
1080P@60/50/30/25/24Hz |
|
|
認證 |
RoHS |
|
|
溫度 |
運行溫度. -10 °C ～ 50 °C (14-122°F) |
|
|
尺寸 |
120(L) x 65(W) x 25(H) mm |
|
|
外殼材質 |
鋁合金 |
|
|
包裝說明 |
①SDI-HDMI主機 * 1Pc |
|
|
