產品詳情

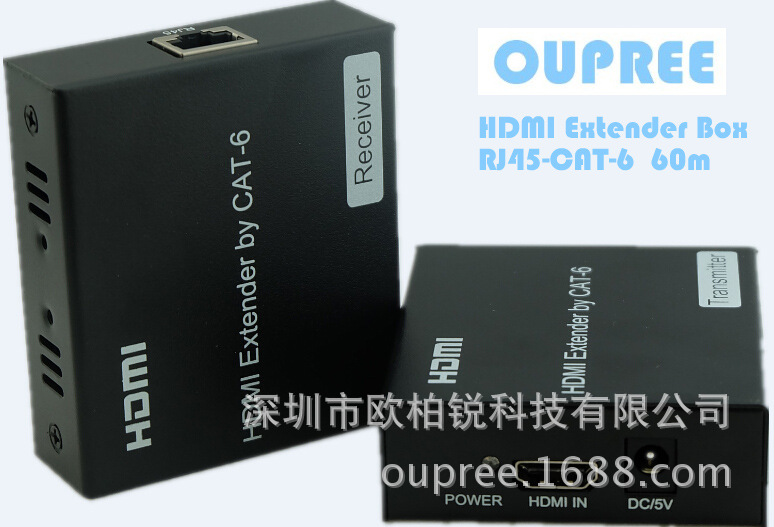

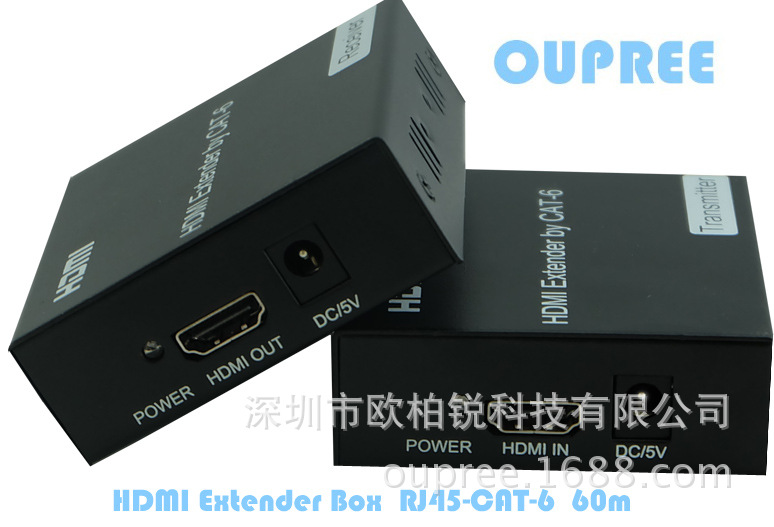

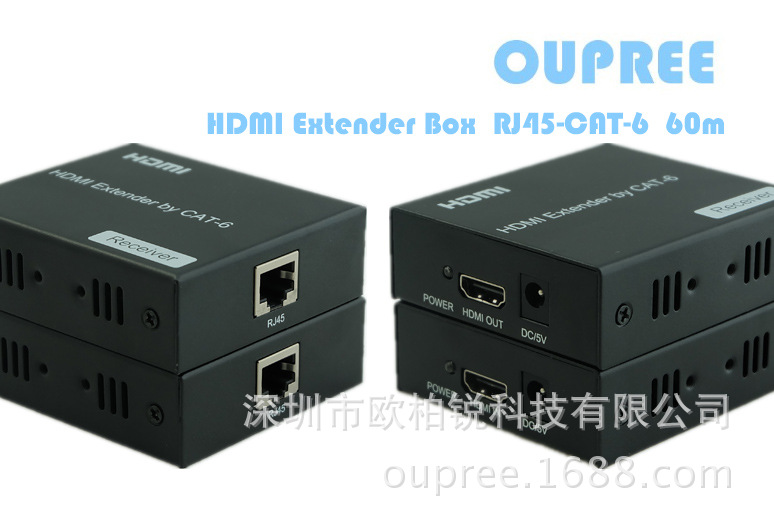

OPR-HR501A HDMI高清視頻延長器，可以將高清HDMI信號延長60米。分為發送端與接收端為一對產品（銷售為一對產品價格）。高清HDMI信號通過發射端協議轉換，通過RJ45網絡線為中間介質傳輸，然后在接收端還原成標準的HDMI信號，達到HDMI中繼延長的作用。
歐柏銳OPR-HR501采用非壓縮全高清技術，大大提高輸送畫面畫質，先后畫質對比100:98。
產品優勢在于：方便工程布線，減少HDMI布線成本高，網線成本低的難題。
產品應用于：如對噪聲、傳輸距離及安全有限制的場所、數據中心控制、信息分配、會議室演示以及教學環境和公司培訓場所。
特性（Features）
l 支持HDMI1.3
l 支持學習EDID功能
l 兼容HDCP 1.2 協議
l 網線符合IEEE-568B標準
l 支持3D
l 支持視輸:/1080p/1080i/720p/576p/576i/480p/480i @24/50/60fps
l 信號傳輸 : 一條cat6或者cat7線（推薦使用）替代HDMI線，接收器和發射器之間線纜最長可達60米
l 支持視頻輸: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
l 支持音頻格式: 支持無壓縮音頻雙聲道音頻傳輸，例如LPCM.
l 無信號損失
l 安裝簡單
規格（Specifications）
|
傳送距離 |
最遠60米 |
|
HDMI輸入 |
24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i |
|
輸入音頻格式支持 |
DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD |
|
HDMI輸出 |
24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i |
|
輸出音頻格式支持 |
DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD |
|
最大傳輸帶寬 |
5.1Gbps |
|
輸入視頻信號 |
0.5~1.5Volts p-p |
|
輸出DDC 信號 |
5Volts p-p (TTL) |
|
HDMI輸入輸出線長 |
.≤20m AWG26 HDMI 1.3線材 |
|
最大工作電流 |
400毫安 |
|
電源適配器規格 |
Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1 A |
|
工作溫度范圍 |
(-15 to +55℃) |
|
工作濕度范圍 |
5 to 90%RH (不凝結) |
|
體積 (L x W x H) |
72X69X25 (毫米) |
|
重量 |
0.37千克 |
|
毛重 |
0.64千克 |
|
包裝盒尺寸(LXWXH) |
250X220X60(毫米) |
應用（Application）
|
